Features and scope of application：

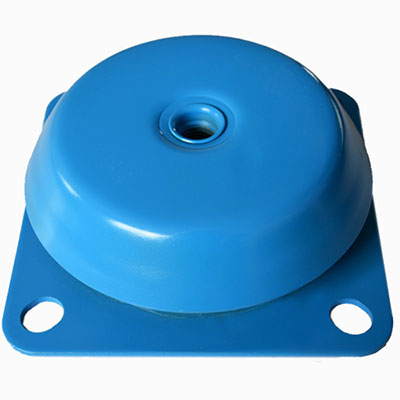

(1) CKM rubber vibration isolator is designed with a fall protection structure, which can maintain the connection of equipment and isolator and prevent fall-off when the rubber body is damaged or broken;

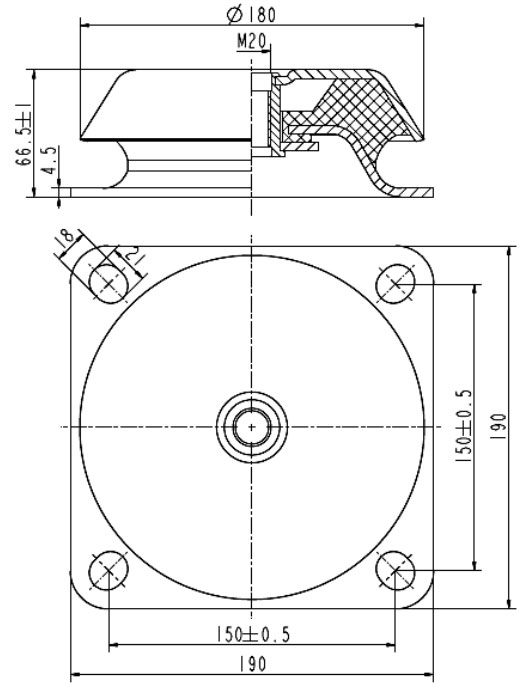

(2) U-shape upper cover and riveted base, compact structure, simple for installation and easy for disassembly;
(3) Mainly used for stationary medium-small power equipments, such as diesel engine, generator unit, air compressor, pumping set and fan etc.
| Model |
Rated load (kN) |
Static deformation under
rated load (mm) |
Reference static stiffness
at rated load (kN / mm) |
Natural frequency
at rated load (Hz) |
Weight (kg) |
| CKM-1 |
8.0 |
5±1.0 |
1.6×(1±15%) |
10±1.5 |
3.36 |
| CKM-2 |
13.5 |
2.7×(1±15%) |
| CKM-3 |
16.8 |
3.4×(1±15%) |
| CKM-4 |
18.5 |
3.7×(1±15%) |
| CKM-5 |
21.0 |
4.2×(1±15%) |
| CKM-6 |
25.0 |
5.0×(1±15%) |
| CKM-7 |
32.0 |
6.4×(1±15%) |
