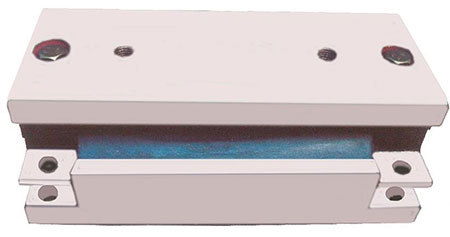

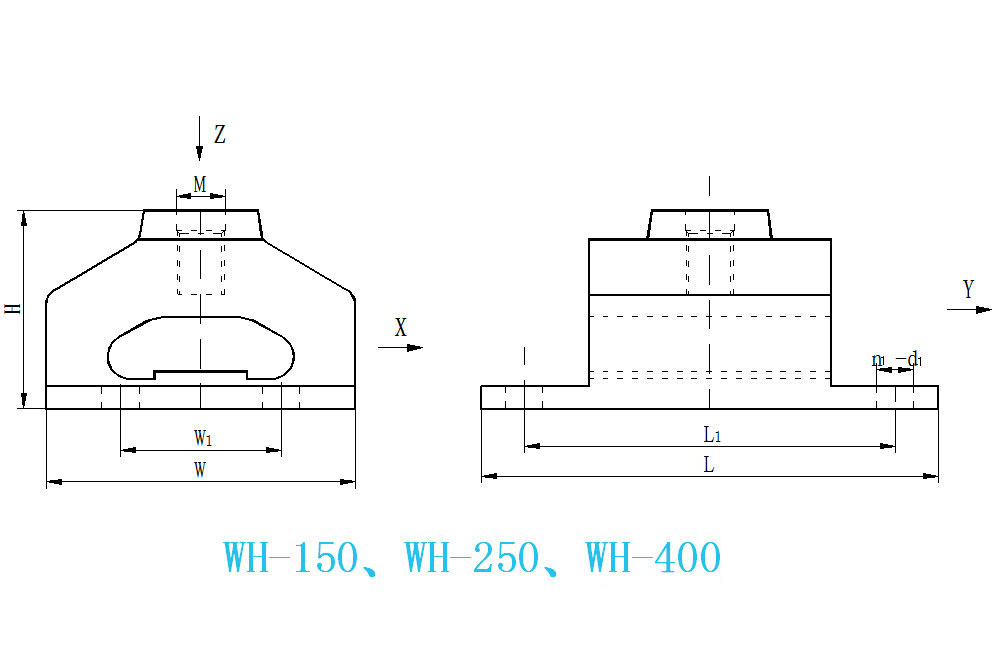

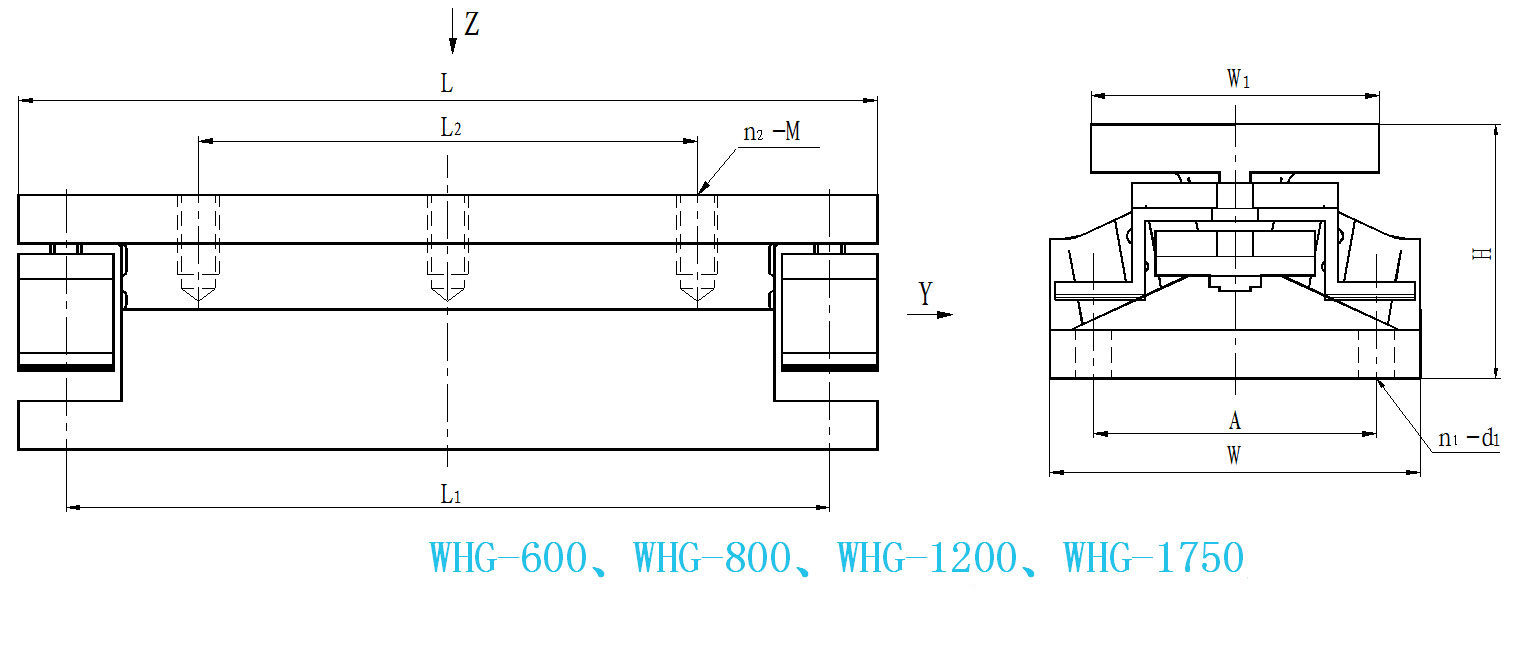

Main Specifications and Technical Data of WH Series Series of Shear Compression Type Isolator
Model |
Dimension and interface size (mm) |
L |
L1 |
L2 |
H |
W |
W1 |
A |
n1 |
d1 |
n2 |
M |
WH-150 |
185 |
150 |
— |
80 |
127 |
65 |
— |
4 |
15 |
1 |
M18 |
WH-250 |
185 |
150 |
— |
80 |
127 |
65 |
— |
4 |
17 |
1 |
M22 |
WH-400 |
185 |
150 |
— |
80 |
127 |
65 |
— |
4 |
19 |
1 |
M24 |
WHG-600 |
280 |
243 |
140 |
100 |
144 |
112 |
110 |
4 |
14 |
2 |
M16 |
WHG-800 |
334 |
297 |
194 |
100 |
144 |
112 |
110 |
4 |
14 |
3 |
M16 |
WHG-1200 |
340 |
296 |
200 |
130 |
204 |
115 |
168 |
4 |
20 |
3 |
M24 |
WHG-1750 |
460 |
403 |
240 |
130 |
204 |
115 |
168 |
4 |
20 |
3 |
M24 |
Model |
Z-direction rated
load (kN) |
Static deformation
under rated load (mm) |
Natural frequency
at rated load (Hz) |
Weight(kg) |
WH-150 |
1.5 |
12±2.0 |
6±1.0 |
3.0 |
WH-250 |
2.5 |
12±2.0 |
6±1.0 |
3.3 |
WH-400 |
4.0 |
12±2.0 |
6±1.0 |
3.5 |
WHG-600 |
6.0 |
12±2.0 |
6±1.5 |
14.2 |
WHG-800 |
8.0 |
12±2.0 |
6±1.5 |
17.1 |
WHG-1200 |
12.0 |
12±2.0 |
6±1.5 |
28.1 |
WHG-1750 |
17.5 |
12±2.0 |
6±1.5 |
38.3 |
Features and scope of application:
(1) Low inherent frequency, good effect of vibration isolation in a wide range of interfering frequency; proper damping ratio, certain abatement to resonance peak. Resistant to oil, seal water, salt mist and sunlight.
(2) Generally used for horizontal installation, and can be used for vibration and impact isolation of general mechanical and electrical equipments.
