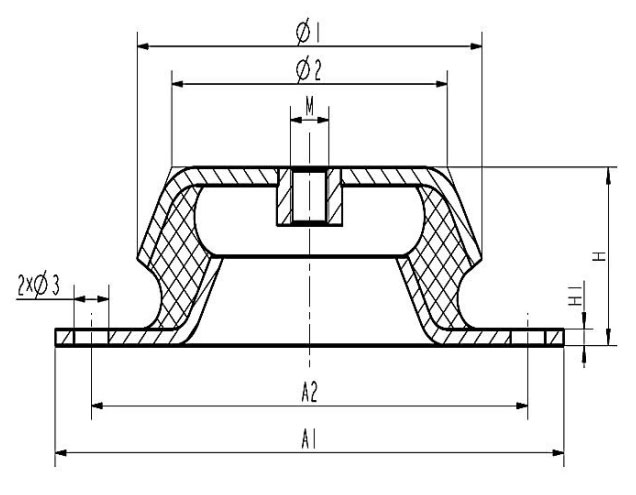

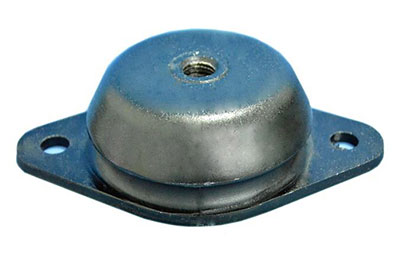

Main Specifications and Technical Data of ZA Series Vibration Isolator
Model |
Φ1 |
Φ2 |
Φ3 |
A1 |
A2 |
H |
H1 |
M |
Weight(kg) |
ZA-39 |
104 |
82 |
13.5 |
172 |
135 |
39 |
5 |
16 |
0.60 |
ZA-49 |
144 |
115 |
14.5 |
212 |
182 |
49 |
5 |
16 |
1.15 |
Model-Specifications |
Load Unit (N) |
Vertical static
deformation (mm) |
Vertical natural
frequency (Hz) |
Damping ratio
(C / Cc) |
Operating
Temperature(° C) |
ZA-39-40 |
900~1500 |
1.0~3.0 |
13~17 |
0.08 |
-40~+70 |
ZA-39-50 |
1500~2500 |
1.0~3.0 |
13~17 |
0.08 |
-40~+70 |
ZA-39-60 |
2500~4000 |
1.0~3.0 |
13~17 |
0.08 |
-40~+70 |
ZA-39-70 |
4000~6400 |
1.0~3.0 |
13~17 |
0.08 |
-40~+70 |
ZA-49-40 |
2500~5500 |
3.8~8.0 |
8.5~10 |
0.08 |
-40~+70 |
ZA-49-50 |
5500~7500 |
2.0~5.7 |
9.5~14 |
0.08 |
-40~+70 |
ZA-49-60 |
7500~10000 |
2.4~5.5 |
10~15 |
0.08 |
-40~+70 |
ZA-49-70 |
10000~12000 |
2.3~4.5 |
11~15 |
0.08 |
-40~+70 |
Scope of application:
Mainly used for vibration reduction of wind turbine, water pump, medium and small diesel generator; wide scope of application, good damping effect. Product deformation can be customized as demand by customers.
