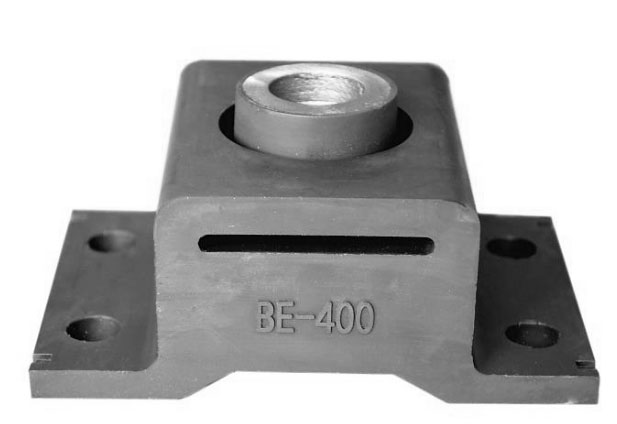

BE series vibration isolator

Location: Home > Products

[Click to view big picture]


Features and scope of application:

(1) This type of vibration isolator has a fall protection structure, which can maintain connection with equipment and prevent fall-off even if the rubber body is damaged or broken;
(2) Applicable to horizontal installation, side mounting, upside down mounting and other forms of installation;
(3) Resistant to oil, sea water, salt mist and sunlight, as required for ships;
(4) Mainly used for vibration and impact isolation of diesel engine, fan, water pump, air compressor, motor and other marine, stationary and aeronautical mechanical equipments over 1500 r/min.

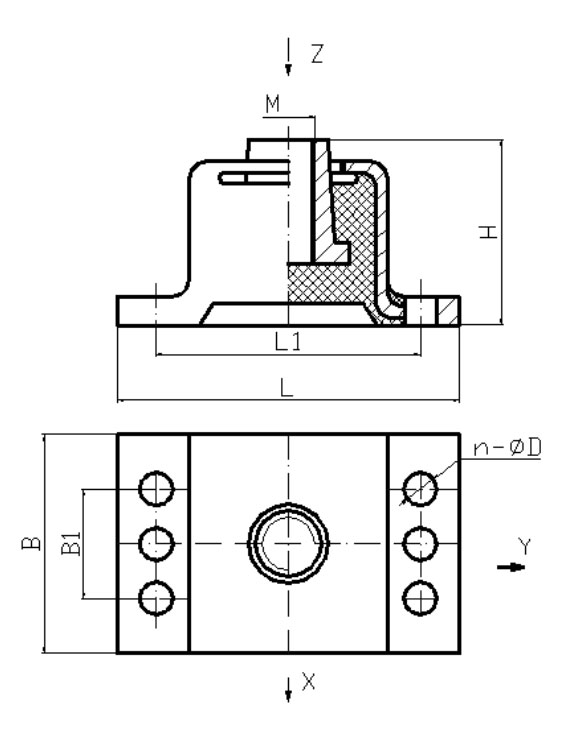

Boundary dimension and interface size of BE type series vibration isolator

Unit: mm
Model M L L1 H B B1 n d
BE-10 M8 70 54 40 36 - 2 Φ7
BE-15 M8 70 54 40 36 - 2 Φ7
BE-25 M8 70 54 40 40 - 2 Φ7
BE-40 M10 85 68 46 55 - 2 Φ9
BE-60 M12 100 80 50 65 - 2 Φ9
BE-85 M14 120 100 60 70 - 2 Φ11
BE-120 M16 140 112 60 85 - 2 Φ13
BE-160 M18 145 115 62 90 - 2 Φ13
*BE-220 M22 150 120 62 100 - 2 Φ15
BE-220 M22 150 120 70 105 - 2 Φ15
*BE-300 M24 155 125 67 105 60 4 Φ15
BE-300 M24 155 125 75 115 60 4 Φ15
*BE-400 M27 160 130 67 110 65 4 Φ15
BE-400 M27 175 140 80 120 65 4 Φ17
Note: the product size in addition to the models indicated with *, all size are for size spectrum regulation, but the * products are also for market circulation.

Main specifications and performance parameters of BE type series vibration isolator

Unit: mm
Model Rated load (N) Static deformation (mm) Dynamic stiffness(N/mm) Natural frequency (Hz) Damping ratio
(C/Cc)
Weight(kg)
Z+ Z- Y X Z Z+ Z- Y X
BE-10 100 70 120 50 1.5~3.0 40 44 96 37 10±1.5 0.07~0.11 0.10
BE-15 150 100 170 70 60 67 145 55 0.10
BE-25 250 170 300 150 100 110 241 92 0.15
BE-40 400 280 450 200 3.5~5.0 161 178 387 148 0.25
BE-60 600 400 700 300 242 266 580 222 0.40
BE-85 850 600 1000 400 342 377 822 315 0.70
BE-120 1200 800 1350 600 483 533 1280 445 1.00
BE-160 1600 1100 1800 800 644 710 1570 560 1.20
BE-220 2200 1500 2400 1100 880 977 2268 816 1.50
BE-300 3000 2000 3300 1500 1210 1332 3093 1110 1.80
BE-400 4000 2800 4300 1800 1610 1776 4120 1480 2.30

Note: Z+ is a seat-installed rated load, and Z- is an overhang-mounted rated load
