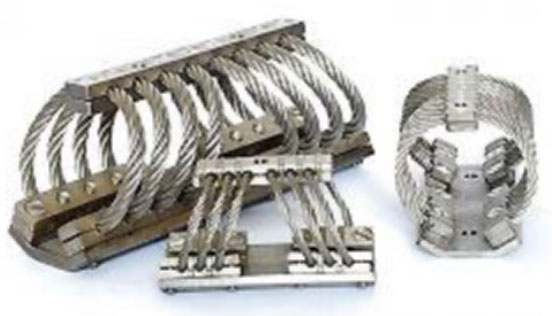

GSG series stainless steel wire rope vibration isolator is a new type of vibration isolator designed and developed again on the basis of the GS series vibration isolator by mutual complementarity, and its forward and lateral bearing capacity are basically close, of which the lateral bearing capacity is 70% of the forward bearing capacity, and the support structure of wire rope is arched shape, so its stability is greatly improved and the isolation effect has also been greatly improved. GSG series vibration isolator has achieved very good using effect in the shipbuilding industry, and users are very satisfied with it. In recent years, it has been used in aerospace, automotive, electrical and mechanical aspects, and has received unanimous praise.
Performance parameters of GS series stainless steel wire rope vibration isolator
Unspecified units：mm
| Model |
Flat seat (x direction) |
Side hang (Y.Z direction) |
Weight(kg) |
Magnification |
| Rated load
(kg) |
Natural frequency (Hz) |
Static deformation(mm) |
Rated load
(kg) |
Natural frequency
(Hz) |
Static deformation
(mm) |
| GSG-0.5 |
0.5 |
7～11 |
2～4 |
0.35 |
7～10 |
3～5 |
0.14 |
≦2.5 |
| GSG-1 |
1 |
7～11 |
2～4 |
0.7 |
7～10 |
3～5 |
0.15 |
| GSG-2 |
2 |
7～11 |
2～4 |
1.4 |
7～10 |
3～5 |
0.3 |
| GSG-3 |
3 |
7～11 |
2～4 |
2.1 |
7～10 |
3～5 |
0.35 |
| GSG-5 |
5 |
7～11 |
2～4 |
3.5 |
7～10 |
3～5 |
0.35 |
| GSG-8 |
8 |
7～11 |
2～4 |
5.6 |
7～10 |
3～5 |
0.45 |
| GSG-10 |
10 |
7～11 |
2～5 |
7 |
7～10 |
4～7 |
0.45 |
| GSG-12 |
12 |
7～11 |
2～5 |
8.5 |
7～10 |
4～7 |
0.6 |
| GSG-15 |
15 |
7～11 |
2～5 |
11 |
7～10 |
4～7 |
0.6 |
| GSG-20 |
20 |
7～11 |
2～5 |
15 |
7～10 |
4～7 |
0.68 |
| GSG-30 |
30 |
7～11 |
3～6 |
21 |
7～10 |
4～7 |
1.15 |
| GSG-40 |
40 |
7～11 |
3～6 |
30 |
7～10 |
4～7 |
1.3 |
| GSG-60 |
60 |
7～10 |
4～7 |
45 |
7～10 |
5～8 |
2.3 |
| GSG-80 |
80 |
7～10 |
4～7 |
60 |
7～10 |
5～8 |
2.4 |
| GSG-100 |
100 |
7～10 |
4～7 |
70 |
7～10 |
5～8 |
3.9 |
| GSG-150 |
150 |
7～10 |
4～7 |
105 |
7～10 |
5～8 |
4.6 |
| GSG-200 |
200 |
7～10 |
4～7 |
140 |
7～10 |
5～8 |
4.1 |
| GSG-250 |
250 |
7～10 |
4～7 |
180 |
7～10 |
5～8 |
5.86 |
| GSG-300 |
300 |
7～10 |
4～7 |
210 |
7～10 |
5～8 |
6.3 |

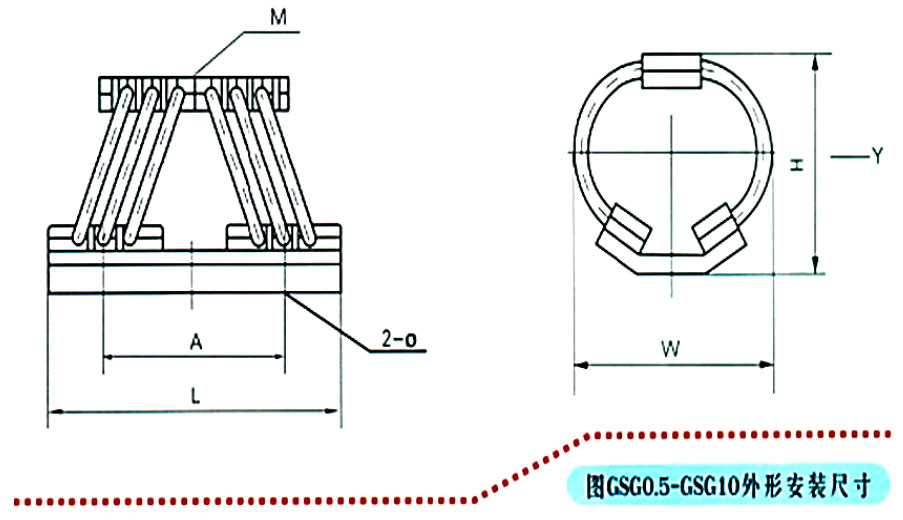

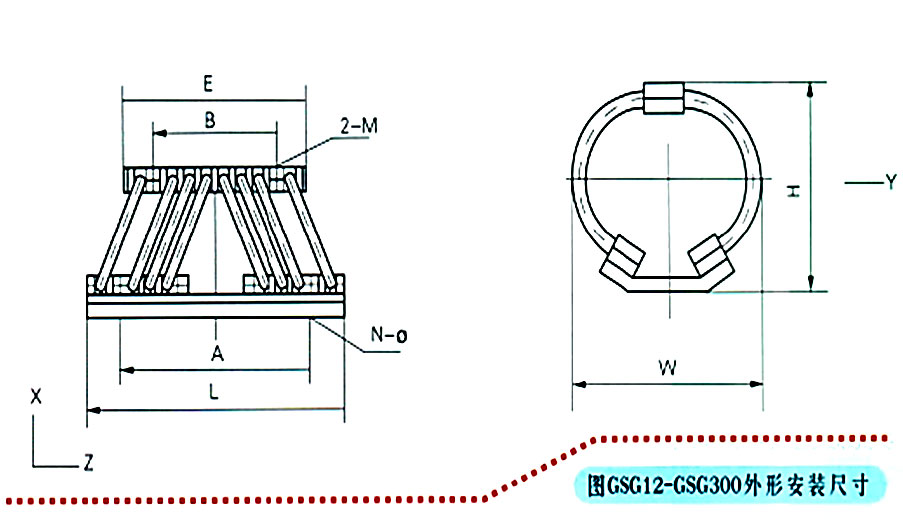

Outline installation size of GSG series stainless steel wire rope vibration isolator;
Unspecified units：mm
| Model |
L |
E |
W |
H |
A |
B |
M |
ф |
N |
| GSG-0.5 |
81 |
40 |
48 |
45 |
49 |
|
4 |
4.6 |
2 |
| GSG-1 |
87 |
52 |
45 |
41 |
43 |
|
4 |
4.6 |
2 |
| GSG-2 |
106 |
64 |
59 |
54 |
56 |
|
5 |
5.6 |
2 |
| GSG-3 |
100 |
57 |
68 |
63 |
51 |
|
5 |
5.6 |
2 |
| GSG-5 |
95 |
57 |
62 |
56 |
60 |
|
6 |
6.7 |
2 |
| GSG-8 |
104 |
65 |
63 |
59 |
69 |
|
6 |
6.7 |
2 |
| GSG-10 |
104 |
65 |
62 |
59 |
69 |
|
6 |
6.7 |
2 |
| GSG-12 |
132 |
95 |
67 |
63 |
84 |
65 |
6 |
6.7 |
2 |
| GSG-15 |
132 |
95 |
64 |
59 |
80 |
65 |
6 |
6.7 |
2 |
| GSG-20 |
136 |
95 |
75 |
67 |
90 |
65 |
6 |
6.7 |
2 |
| GSG-30 |
160 |
117 |
82 |
76 |
114 |
52 |
6 |
6.7 |
2 |
| GSG-40 |
180 |
126 |
91 |
86 |
138 |
56 |
6 |
9 |
3 |
| GSG-60 |
226 |
160 |
106 |
100 |
172 |
72 |
8 |
9 |
3 |
| GSG-80 |
212 |
160 |
101 |
94 |
160 |
72 |
8 |
9 |
3 |
| GSG-100 |
266 |
200 |
131 |
110 |
202 |
92 |
8 |
9 |
3 |
| GSG-150 |
266 |
200 |
125 |
121 |
204 |
92 |
8 |
9 |
3 |
| GSG-200 |
256 |
200 |
127 |
111 |
190 |
92 |
8 |
9 |
3 |
| GSG-250 |
289 |
218 |
135 |
120 |
198 |
100 |
10 |
11 |
3 |
| GSG-300 |
300 |
218 |
145 |
133 |
216 |
100 |
10 |
11 |
3 |
