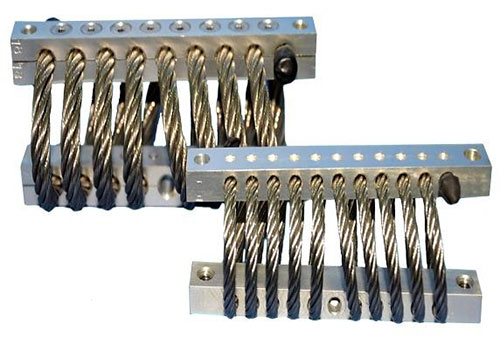

Performance parameters of GS2 series stainless steel wire rope vibration isolator

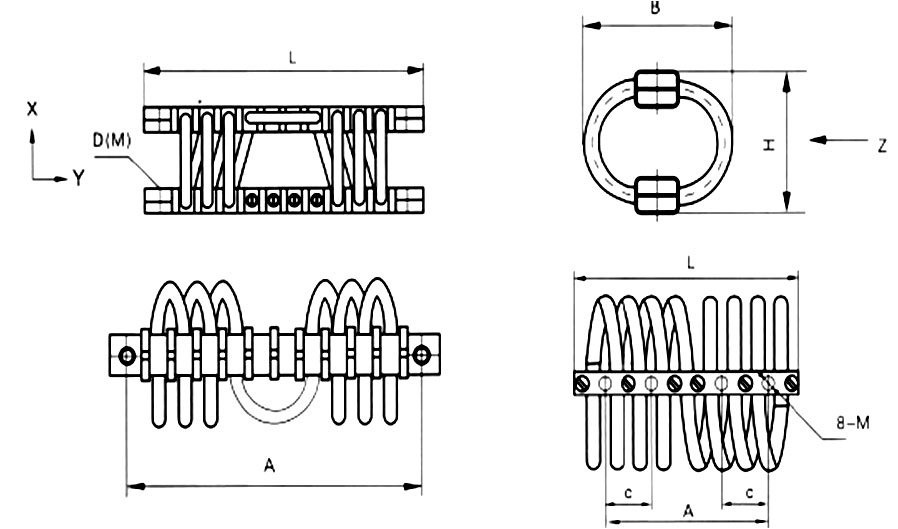

Unspecified units：mm
| Model |
Flat seat (x direction) |
Side hang (Y.Z direction) |
Basic parameters |
Rated
load
(kg) |
Natural
frequency
(Hz) |
Damping ratio (c/Cc) |
Rated
load
(kg) |
load
frequency
(Hz) |
Damping ratio (c/Cc) |
L |
A |
H |
B |
C |
D |
| GS2-0.5 |
0.45 |
8～12 |
>0.12 |
0.8 |
7～13 |
>0.12 |
112 |
100 |
47 |
53 |
|
M5 |
| GS2-0.6 |
0.6 |
8～12 |
1.2 |
7～13 |
112 |
100 |
47 |
53 |
|
M5 |
| GS2-1.2 |
1.2 |
8～12 |
2 |
7～13 |
112 |
100 |
45 |
51 |
|
M5 |
| GS2-2 |
2 |
6～9 |
3 |
7～10 |
128 |
114 |
52 |
61 |
|
M6 |
| GS2-3 |
3 |
6～9 |
4 |
7～10 |
128 |
114 |
52 |
61 |
|
M6 |
| GS2-6 |
6 |
6～9 |
15 |
7～10 |
128 |
114 |
57 |
80 |
|
M6 |
| GS2-10 |
10 |
6～9 |
20 |
7～10 |
128 |
114 |
57 |
80 |
|
M6 |
| GS2-12 |
12 |
6～9 |
25 |
7～10 |
128 |
114 |
55 |
74 |
|
M6 |
| GS2-15 |
15 |
6～9 |
31 |
7～10 |
128 |
114 |
55 |
74 |
|
M6 |
| GS-25 |
25 |
6～9 |
50 |
7～10 |
146 |
131 |
63 |
90 |
|
M6 |
| GS-40 |
40 |
6～9 |
80 |
7～10 |
184 |
160 |
89 |
108 |
40 |
M8 |
| GS-60 |
60 |
6～9 |
100 |
7～10 |
184 |
160 |
74 |
90 |
40 |
M8 |
| GS-150Z |
80 |
4～7 |
150 |
5～8 |
220 |
161 |
137 |
156 |
46 |
M8 |
| GS-200Z |
100 |
4～7 |
200 |
5～8 |
220 |
161 |
124 |
143 |
46 |
M8 |
| GS-250Z |
130 |
4～7 |
250 |
5～8 |
220 |
161 |
104 |
120 |
46 |
M8 |
| GS-300Z |
160 |
4～7 |
300 |
5～8 |
270 |
196 |
146 |
185 |
56 |
M10 |
| GS-400Z |
|
|
400 |
4～7 |
324 |
248 |
156 |
172 |
82.5 |
M10 |
