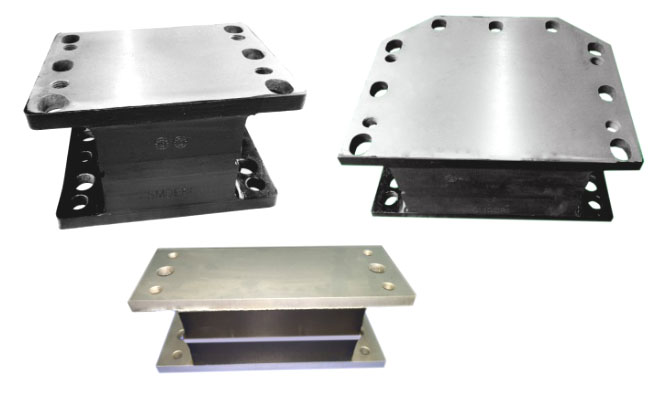

Performance characteristics:
（1）GZ type series vibration isolator is composed of top and bottom panel, rubber body, etc;
（2）Big bearing capacity, simple structure; oil resistant, sea water resistant, and salt fog resistant etc.;
（3）It can be installed in a horizontal or oblique manner;
（4）It is suitable for vibration isolation and shock resistance of large power machinery equipment such as diesel engine and diesel unit.

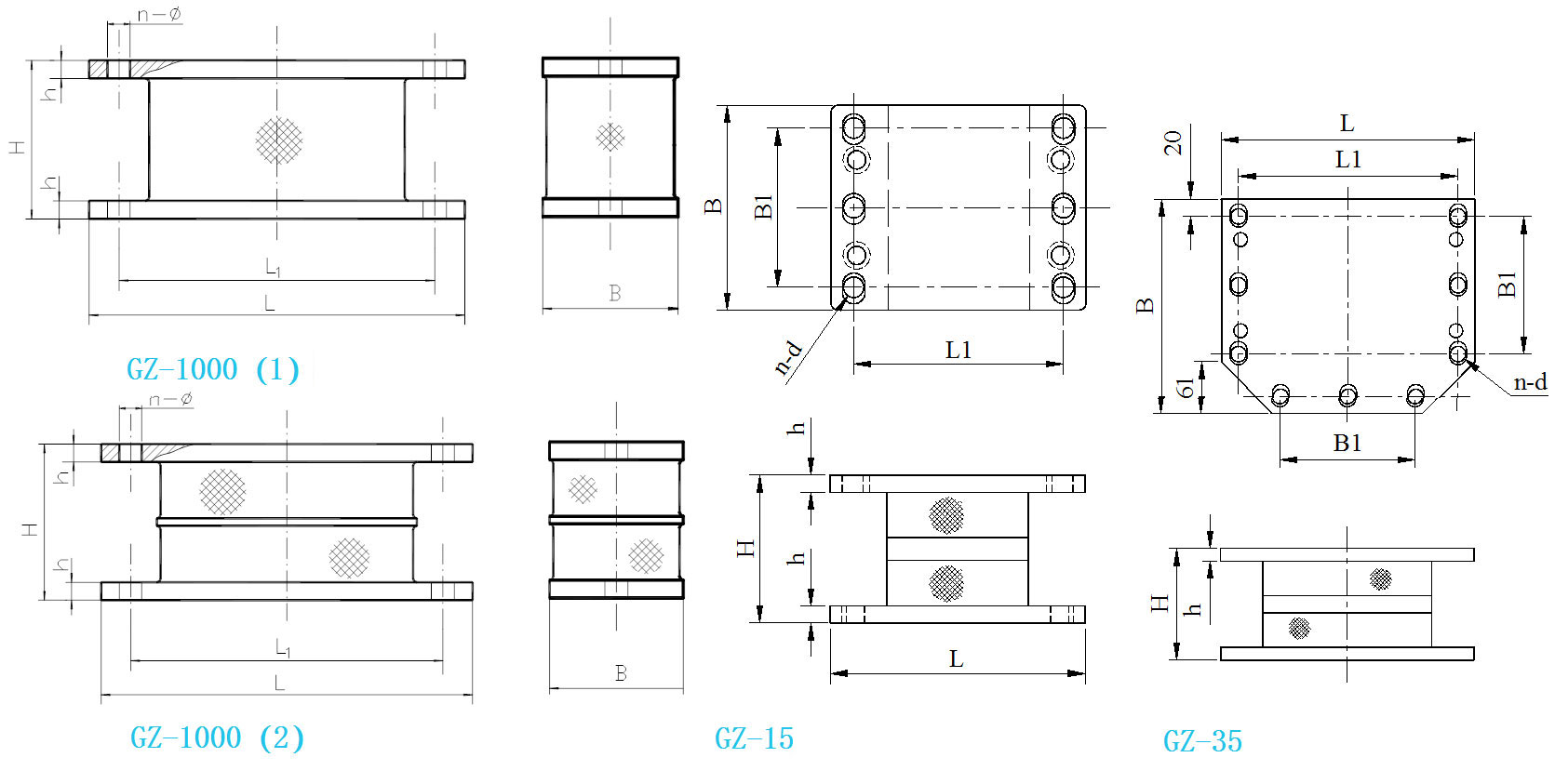

Boundary dimension and interface size of GZ type series vibration isolator
Unit: mm
| Model |
L |
L1 |
B |
B1 |
H |
h |
n-d (φ) |
| GZ-1000(1) |
250 |
210 |
90 |
— |
110 |
12 |
4×Φ2 |
| GZ-1000(2) |
250 |
210 |
90 |
— |
105 |
12 |
4×Φ12 |
| GZ-15 |
225 |
185 |
180 |
140 |
130 |
15 |
4×Φ12 |
| GZ-35 |
300 |
260 |
250 |
160 |
130 |
15 |
18×Φ18 |
Main specifications and performance parameters of GZ type series vibration isolator
Unit: mm
| Model |
Rated load (N) |
Static deformation at rated load (mm) |
Natural frequency at rated load (Hz) |
Weight(kg) |
| GZ-1000(1) |
10000 |
10±1.5 |
6±1.0 |
5.5 |
| GZ-1000(2) |
10000 |
5±1.0 |
9±1.5 |
5.5 |
| GZ-15 |
15000 |
5.5±1.0 |
8.5±1.0 |
13.0 |
| GZ-35 |
35000 |
5.5±1.0 |
8.5±1.0 |
24.0 |
Note: the product size in addition to the models indicated with ＊, all size are for size spectrum regulation, but the * products are also for market circulation.
