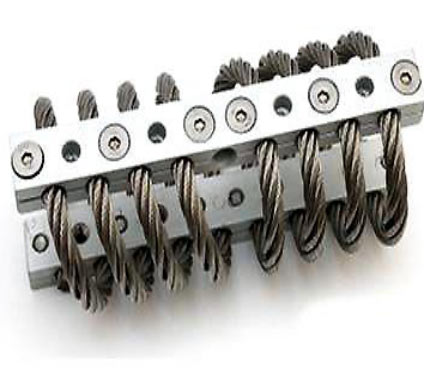

GS series of stainless steel wire rope vibration isolator is more than 10 years in the industry's most widely used and very mature vibration isolation products, large damping, low magnification, the inherent frequency is low, impact resistance, and high temperature, Anti-corrosion ability, the use of easy to install, widely used, welcomed by the majority of users.
Performance parameters of GS series stainless steel wire rope vibration isolator
Magnification:mm
Load mode |
Side hang (Y.Z direction) |
Flat seat (x direction) |
Basic parameters |
Model |
Rated load
(kg) |
Natural frequency
(Hz) |
Static deformation
(mm) |
Damping ratio (c/Cc) |
Rated load (kg) |
Natural frequency (Hz) |
Static deformation (mm) |
Damping ratio (c/Cc) |
L |
B |
H |
A |
D |
C |
Weight
(kg) |
GS-0.45 |
0.45 |
12~16 |
4~7 |
>0.12 |
1.05 |
11~14 |
1~2 |
>0.12 |
112 |
42 |
38 |
100 |
M5 |
|
0.17 |
GS-0.60 |
0.6 |
12~16 |
4~7 |
1.6 |
11~14 |
1~2 |
112 |
42 |
38 |
100 |
M5 |
|
0.17 |
GS-1.2 |
1.2 |
12~16 |
3~6 |
2.7 |
11~14 |
1~2 |
112 |
40 |
36 |
100 |
M5 |
|
0.18 |
GS-2 |
2 |
12~16 |
2~5 |
6 |
11~13 |
1.5~2.5 |
128 |
48 |
40 |
114 |
M6 |
|
0.25 |
GS-3 |
3 |
12~16 |
2~5 |
8 |
11~13 |
1.5~2.5 |
128 |
45 |
40 |
114 |
M6 |
|
0.26 |
GS-6 |
6 |
12~16 |
2~5 |
15 |
11~13 |
1.5~2.5 |
128 |
54 |
46 |
114 |
M6 |
|
0.33 |
GS-8 |
8 |
12~16 |
4~7 |
20 |
9~12 |
1.5~2.5 |
128 |
58 |
51 |
114 |
M6 |
|
0.35 |
GS-10 |
10 |
12~16 |
4~7 |
25 |
9~12 |
1.5~2.5 |
128 |
49 |
44 |
114 |
M6 |
|
0.34 |
GS-12 |
12 |
12~16 |
2~5 |
30 |
9~12 |
1.5~2.5 |
128 |
47 |
42 |
114 |
M6 |
|
0.34 |
GS-15 |
15 |
12~16 |
2~5 |
35 |
9~12 |
2~3 |
128 |
45 |
42 |
114 |
M6 |
|
0.36 |
GS-25 |
25 |
6~8 |
15~18 |
50 |
7~10 |
5.5~7.5 |
146 |
90 |
63 |
114 |
M6 |
|
0.67 |
GS-40 |
40 |
6~8 |
15~18 |
80 |
7~10 |
5.5~7.5 |
184 |
108 |
89 |
160 |
M8 |
40 |
1.45 |
GS-60 |
60 |
6~8 |
12~16 |
100 |
7~10 |
2.5~4 |
184 |
90 |
74 |
160 |
M8 |
40 |
1.40 |
GS-100 |
|
|
|
100 |
9~12 |
5~7 |
215 |
108 |
90 |
160 |
M8 |
40 |
1.84 |
GS-150 |
|
|
|
150 |
9~12 |
5~7 |
215 |
102 |
80 |
160 |
M8 |
40 |
1.79 |
GS-200 |
|
|
|
200 |
9~12 |
5~7 |
215 |
95 |
85 |
160 |
M8 |
40 |
1.79 |
GS-600 |
|
|
|
600 |
7~11 |
10~14 |
324 |
146 |
130 |
247.5 |
M10 |
82.5 |
5.96 |
GS-800 |
|
|
|
800 |
7~11 |
9~14 |
370 |
197 |
175 |
269.5 |
M12 |
77 |
15.1 |
GS-1000 |
|
|
|
1000 |
7~11 |
9~13 |
370 |
178 |
159 |
269.5 |
M12 |
77 |
13.5 |
