CKXT series flexible single-sphere rubber joint

Location: Home > Products

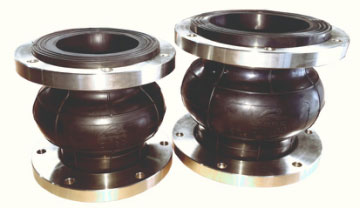

【Click to enlarge】


Introduction:

This product is reinforced by nylon or polyester cord fabric in the inner layer and designed with rubber sphere and loose metallic flange in the outer layer.
High pressure resistance, good elasticity, significant displacement, good effect of vibration absorption and noise reduction, and easy for installation; widely used in the piping systems of water supply and drainage, HVAC, fire control, compressor, papermaking, pharmaceutical, ship, pump, fan and other fields.

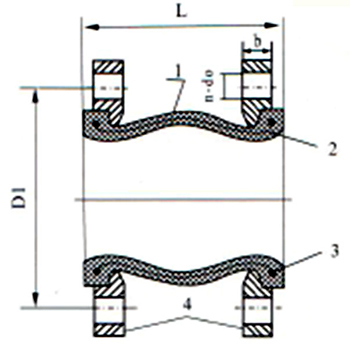

Joint materials:

S.N Part Material
1 Main body Polarized rubber
2 Lining Nylon cord or polyester tire cord
3 Casing Hard steel wire or steel ring
4 Flange Low-carbon or stainless steel

Technical requirements:

Model item CKXT-F(I) CKXT-F(Ⅱ) CKXT-F(Ⅲ)
Working pressure MPa(kgf/cm²) 2.0(20) 1.2(12) 0.8(8)
Bursting pressure MPa(kgf/cm²) 6.0(60) 3.5(35) 2.4(24)
Vacuum degree kPa(mmHg) 100(750) 86.7(650) 53.3(400)
Suitable temperature (℃) -20~+115
Applicable media Air, compressed air, water, sea water, hot water, weak acid, etc.
Both ends of the joint can be arbitrarily deflected, easy for free adjustment of axial or lateral displacement.

Main data table (flange dimensions in the table are CB 46-2007 / T 1.0 MPa) :

Nominal drift diameter DN Length L(mm) Flange thickness b(mm) Bolt number n Diameter of bolt hole d(mm) Diameter of central circle in bolt hole D1(mm) Axial displacement(mm) Transverse displacement (mm) Offset
Angle
(mm) (inch) Elongation Compression
40 1¹/2 95 14 6 15 93 6 10 9 15°
50 2 106 14 6 15 103 8 10 11 15°
65 2¹/2 115 14 6 15 123 8 10 11 15°
80 3 136 14 8 15 138 10 12 13 15°
100 4 151 14 8 15 158 12 15 15 15°
125 5 167 14 10 15 183 14 18 18 15°
150 6 180 14 12 15 208 16 20 20 15°
200 8 190 17 12 17 273 16 20 20 15°
250 10 230 21 14 21 336 16 22 22 15°
