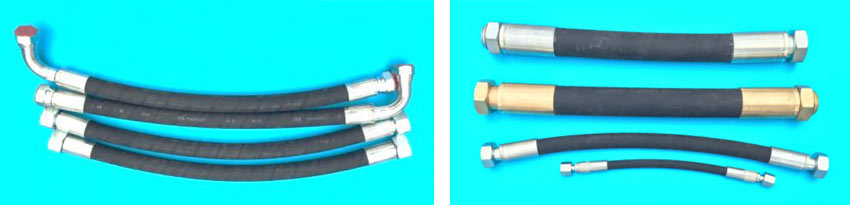

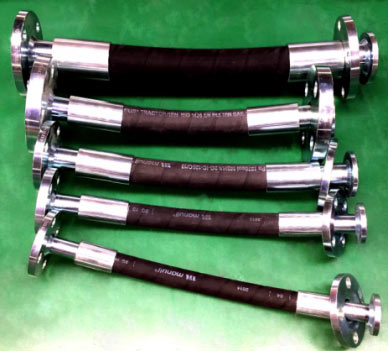

Clamp hose assembly (flange type, bite type)

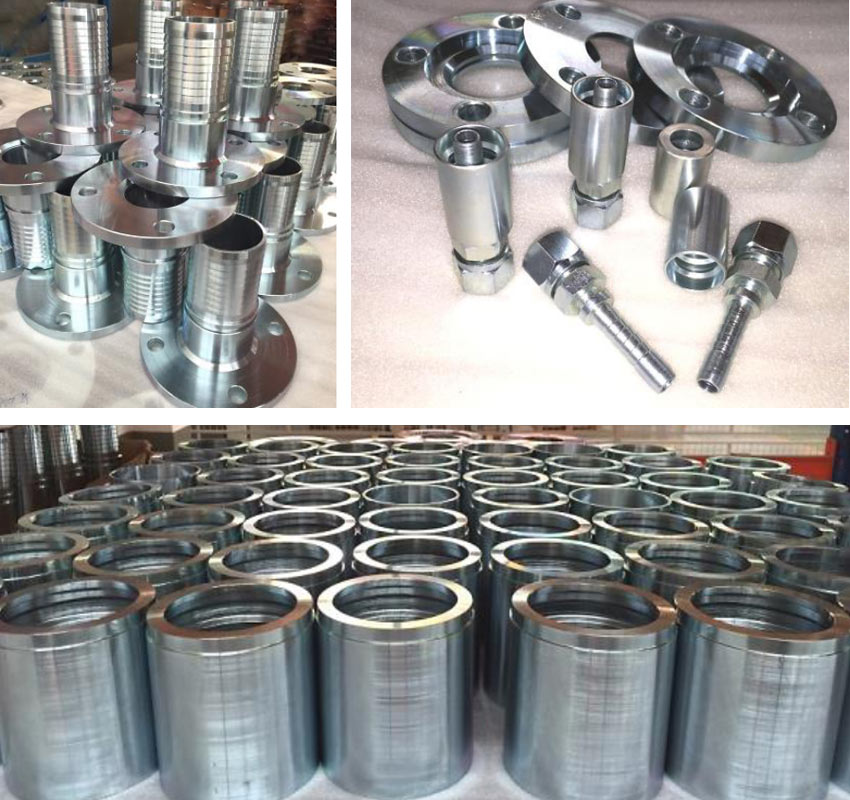

Clamp parts (flange, sleeve)

Composed of metallic connector, wire-braided hose and other components, this assembly is mainly used for transfer of oil-base (such as mineral oil, soluble oil, hydraulic oil, fuel oil and lubricating oil) liquid, water-base liquid (such as emulsified liquid, oil-water emulsion, water), gas and other liquids with certain pressure and temperature in engineering construction, lifting, transportation, metallurgical forging, ship, injection molding machine, agricultural machine, various machine tools, mechanical and automatic hydraulic systems in industrial sectors.

Features：

1. Rubber hose of imported brand with certificate of classification society, resistant to oil, seal water, aging and flame;

2. High loading capacity, superior pulse performance;

3. Hose body tightly bound, flexible, little deformation under pressure;

4. Good warping and fatigue resistance;

5. Hose assembly to be designed and produced in various types;

6. Awarded the factory type certificate by CCS.

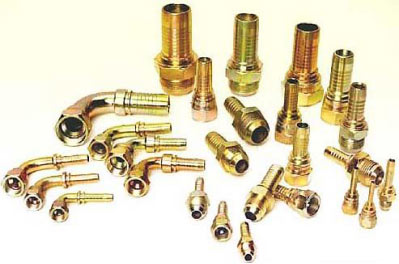

Connector types：

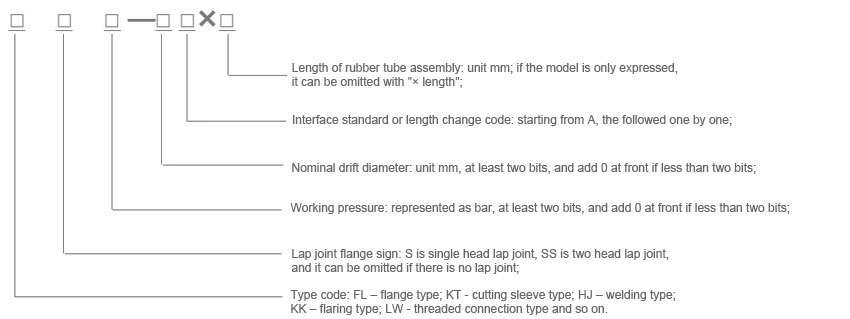

Description of model signs:

Sign sample：

(1) FLS30-40A×500: one head is fixed flange, and one head is lap joint flange, flange withhold rubber tube with working pressure 3.0 MPa, nominal diameter 40 mm and assembly length 500 mm.

(2) KT10-08A×400 refers to the cutting sleeve withhold rubber tube with cutting sleeve connection, working pressure 1.0 MPa, nominal drift diameter 8mm and assembly length 400 mm.

Table for main performance parameters of some withhold rubber tube assemblies

Model	Nominal drift diameter (mm)	Working pressure (MPa)	Bursting pressure (MPa)	Minimum bending radius (mm)	Design pressure (MPa)	Selected rubber tube
FLS05-15A	15	0.5	＞2.0	200	13	“MANULI”TRACTOR/1T EN853 1SN
FLS05-20A	20			240	10.5
FLS05-25A	25			300	8.8
FLS05-32A	32			419	6.3
FLS05-40A	40			500	5
FLS30-25A	25	3.0	＞12.0	300	8.8
KT10-08A	8	1.0	＞4.0	127	18
FLS05-65A	65	0.5	＞2.0	760	7	“MANULI”TRACTOR/2K EN857 2SN
FLS05-80A	80			500	7	“MANULI”ROCKMASTER/2PLUS
