Performance characteristics:

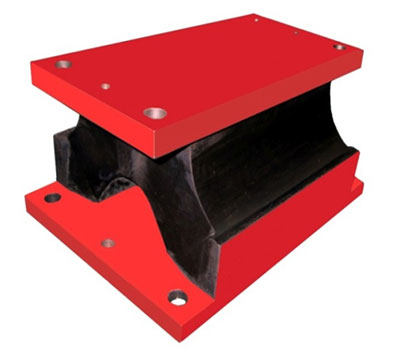

(1)GZ type series vibration isolator is composed of top and bottom panel, rubber body, etc;
(2)Big bearing capacity, simple structure; oil resistant, sea water resistant, and salt fog resistant etc.;
(3)It can be installed in a horizontal or oblique manner;
(4)It is suitable for vibration isolation and shock resistance of large power machinery equipment such as diesel engine and diesel unit.
Applicable models:
DEUTZ MWM TBD series
DAIHUTSU 6DK-20 series
MTU
CATERPILLAR
PA6 series etc.

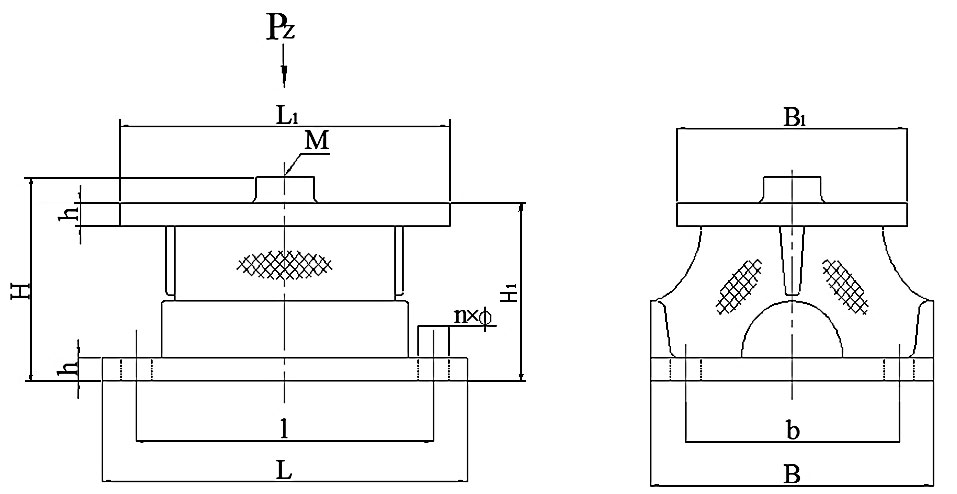

Boundary dimension and interface size of DY type series vibration isolator
Unit: mm
Model |
L |
L1 |
B |
B1 |
H |
H1 |
h |
l |
b |
M |
N×Φ |
DY-5-Ⅰ |
216 |
136 |
130 |
80 |
102 |
94 |
12 |
176 |
80 |
16 |
4×Φ18 |
DY-8 |
230 |
160 |
203 |
124 |
120 |
112 |
12 |
190 |
160 |
16 |
6×Φ18 |

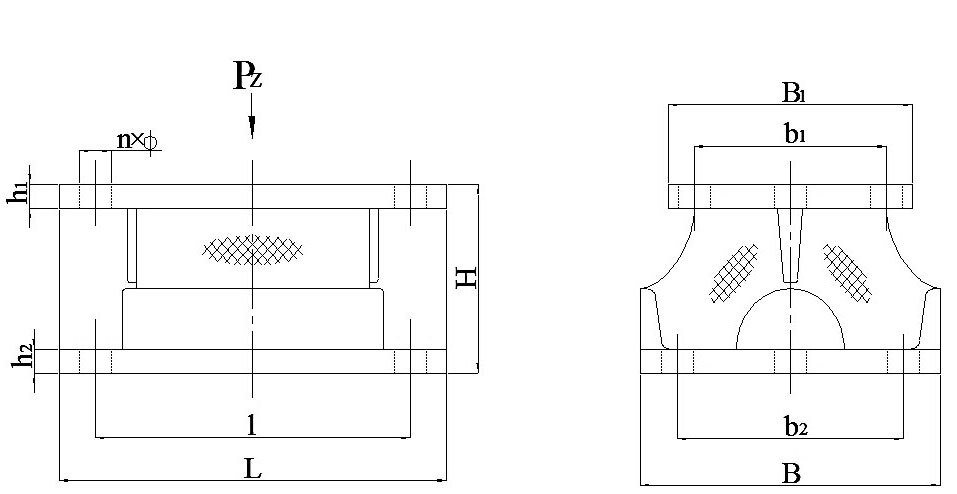

Unit: mm
Model |
L |
B |
B1 |
H |
h1 |
h2 |
I |
b1 |
b2 |
N×Φ |
DY-5-Ⅱ |
216 |
130 |
80 |
94 |
12 |
12 |
176 |
- |
80 |
6×Φ18 |
DY-15 |
330 |
203 |
150 |
110 |
15 |
8 |
298 |
114 |
168 |
12×Φ18 |
DYG-15 |
330 |
203 |
150 |
110 |
15 |
8 |
upper:292
down:298 |
114 |
168 |
upper:6×Φ24
down:6×Φ18 |
DY-30 |
390 |
290 |
200 |
184 |
22 |
22 |
350 |
140 |
230 |
10×Φ18 |
DY-45 |
480 |
352 |
243 |
235 |
30 |
30 |
420 |
180 |
280 |
8×Φ26 |
DYG-45 |
480 |
352 |
243 |
235 |
30 |
30 |
420 |
180 |
280 |
8×Φ26 |
DY-50 |
480 |
352 |
243 |
235 |
30 |
30 |
420 |
180 |
280 |
8×Φ26 |
DYG-50 |
480 |
352 |
243 |
235 |
30 |
30 |
420 |
180 |
280 |
8×Φ26 |
DY-80 |
480 |
352 |
243 |
235 |
30 |
30 |
420 |
180 |
280 |
8×Φ26 |
DY-100 |
500 |
360 |
300 |
260 |
30 |
30 |
440 |
235 |
290 |
8×Φ32 |
DY-120 |
500 |
360 |
300 |
260 |
30 |
30 |
440 |
235 |
290 |
8×Φ32 |
Main specifications and performance parameters of DY type series vibration isolator
Model |
Z Rated load(N) |
Z Direction rated load |
Weight(kg) |
Static deformation(mm) |
Natural frequency(Hz) |
DY-5-Ⅰ |
5000 |
8.5±1.0 |
7.5±1.0 |
5 |
DY-5-Ⅱ |
5000 |
8.5±1.0 |
7.5±1.0 |
5 |
DY-8
|
8000 |
8.5±1.0 |
7.5±1.0 |
10 |
DY-15 |
15000 |
8.5±1.0 |
7.5±1.0 |
15 |
DYG-15 |
15470 |
7.9±1.6 |
6.6~8.1 |
15 |
DY-30 |
30000 |
20±3.0 |
5±1.0 |
52 |
DY-45 |
45000 |
28±3.0 |
5±1.0 |
100 |
DYG-45 |
20480 |
12.05±2.41 |
5.2±0.78 |
100 |
DY-50 |
50000 |
20±3.0 |
6.0±1.0 |
102 |
DYG-50 |
50000 |
15±2.5
|
6.0±1.0 |
102 |
DY-80 |
80000 |
19±2.5 |
6.0±1.0 |
102 |
DY-100 |
100000 |
18±2.5 |
6.0±1.0 |
125 |
DY-120 |
120000 |
18±2.5 |
6.0±1.0 |
125 |
